IPv6 cgsh_2024

一、CGSH ipv6

1.IPv6 CGSH

單位DNS AAAAIPv6 prefixRoute D PointSchool A Point
中港高中2001:288:5402::12001:288:5402/482001:288:54FF:02::1/642001:288:54FF:02::FF/64

2.介面IP設定

教育局（市網介面 IP6）
2001:288:54ff:2::1/64

學校A點（WAN IP6）
2001:288:54ff:2::ff/64

教網中心 IPv6 DNS
2001:288:5400::1/128
2001:288:5400::3/128

中港高中 IPv6 prefix
2001:288:5402::/48

3.IPv6的DNS

台中市教育局 DNS
2001:288:5400::1
2001:288:5400::3

Hinet DNS
2001:b000:168::1
2001:b000:168::2

google DNS
2001:4860:4860::8888
2001:4860:4860::8844

4.IPv6測試

https://test-ipv6.com/index.html.zh_TW
https://ipv6.tc.edu.tw/

5.Subnet masks (IPv4) and prefixes (IPv6)

IPv4（10進位）
0.0.0.0
255.255.255.255

0.0/16
255.255.255/24
255.255.255.255/32

IPv6（16進位）
0000:0000:0000:0000:0000:0000:0000:0000
ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff


ffff:ffff:ffff/48
ffff:ffff:ffff:ffff/64
ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff/128

中港高中 IPv6 prefix
2001:288:5402::/48

2001:288:5402::61/64

2001:288:5402:61::ffff/64

2001:288:5402:61::/64

二、2001:288:5402:61::/64

2001:288:5402:61:1::1 – 2001:288:5402:61:1::ffff

1.介面設定一

1-1.介面 Tanet-CGHS （port9） IPv6：「2001:288:5402::61/64」

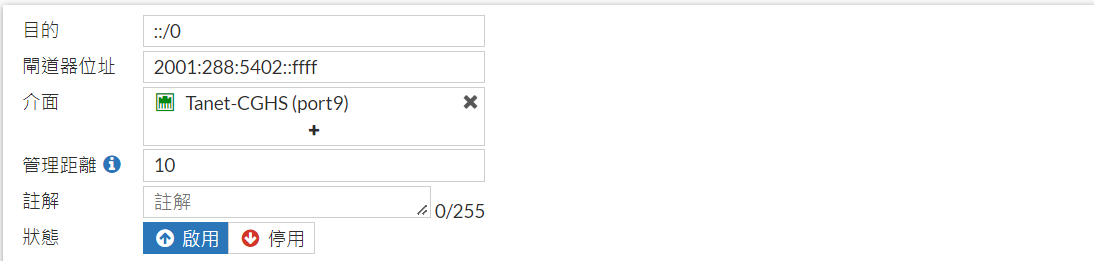

1-2.靜態路由：
 1-2-1.目的：「::/0」
 1-2-2.閘道器位址： 「2001:288:5402::ffff」
 1-2-3.介面： 「Tanet-CGHS (port9)」

2.介面設定二

2-1.介面 （port13） IPv6：「2001:288:5402:61::ffff/64」

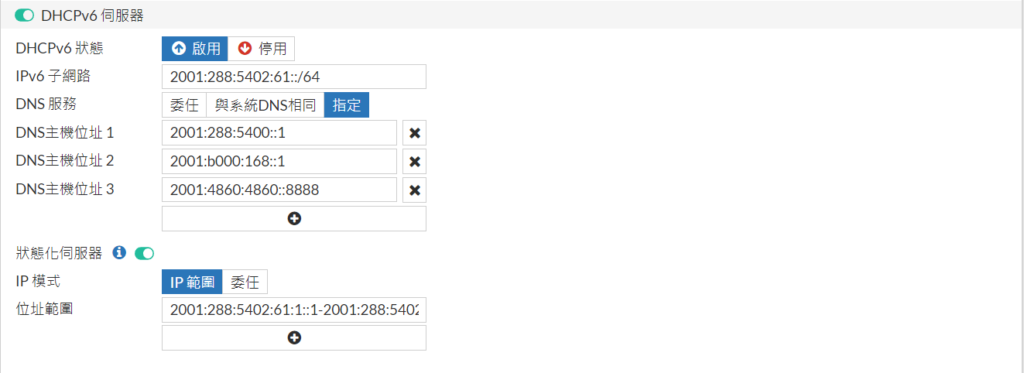

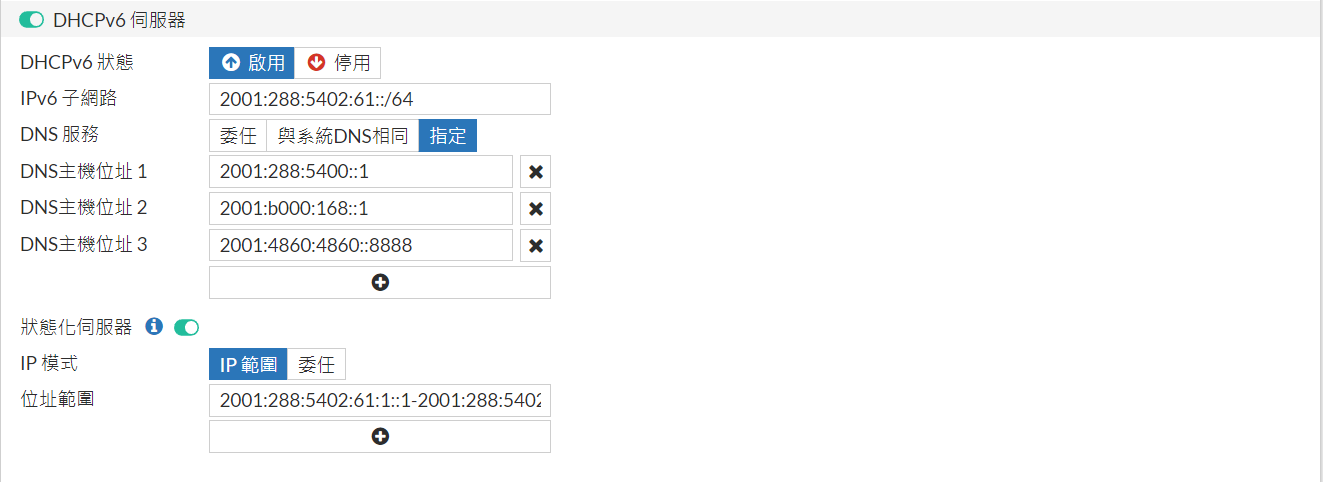

2-2.DHCPv6 伺服器：「2001:288:5402:61:1::1 - 2001:288:5402:61:1::9fe」
2-3.DNS：
台中市教育局 DNS
2001:288:5400::1
2001:288:5400::3
Hinet DNS
2001:b000:168::1
2001:b000:168::2
google DNS
2001:4860:4860::8888
2001:4860:4860::8844

3.防火牆政策

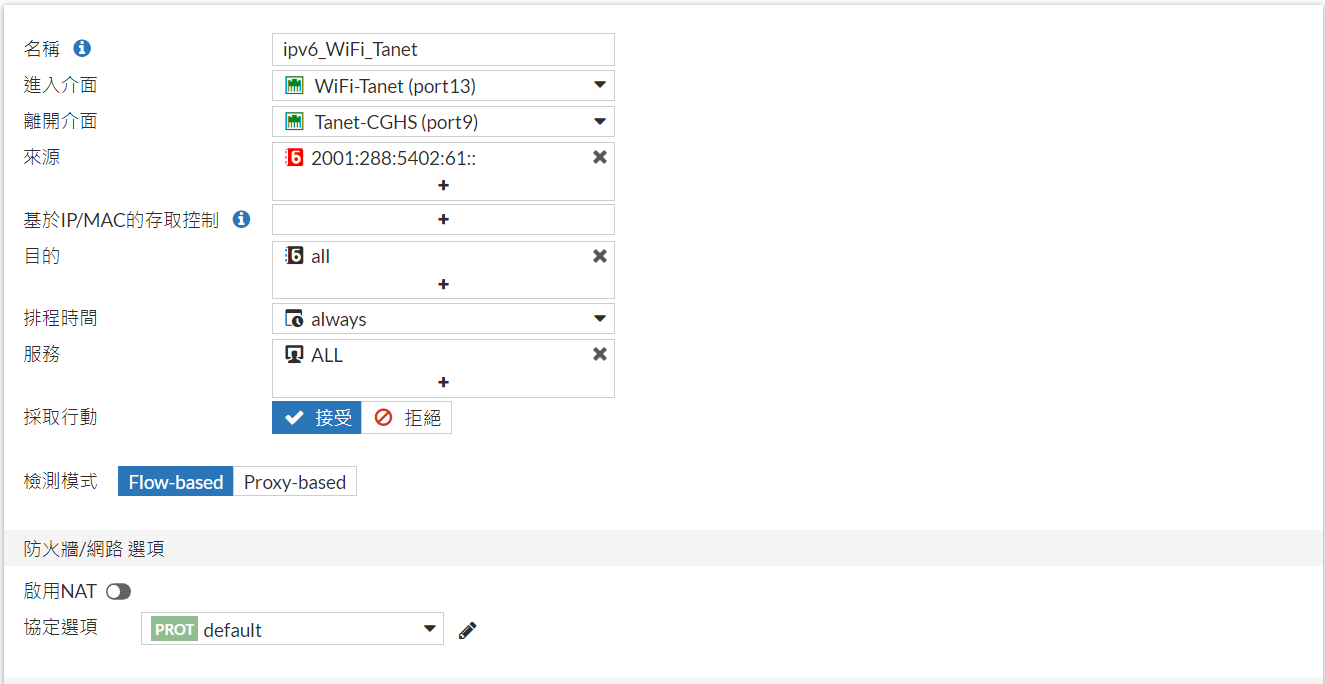

3-1. WiFi to Tanet（服務 ALL、目的 all）

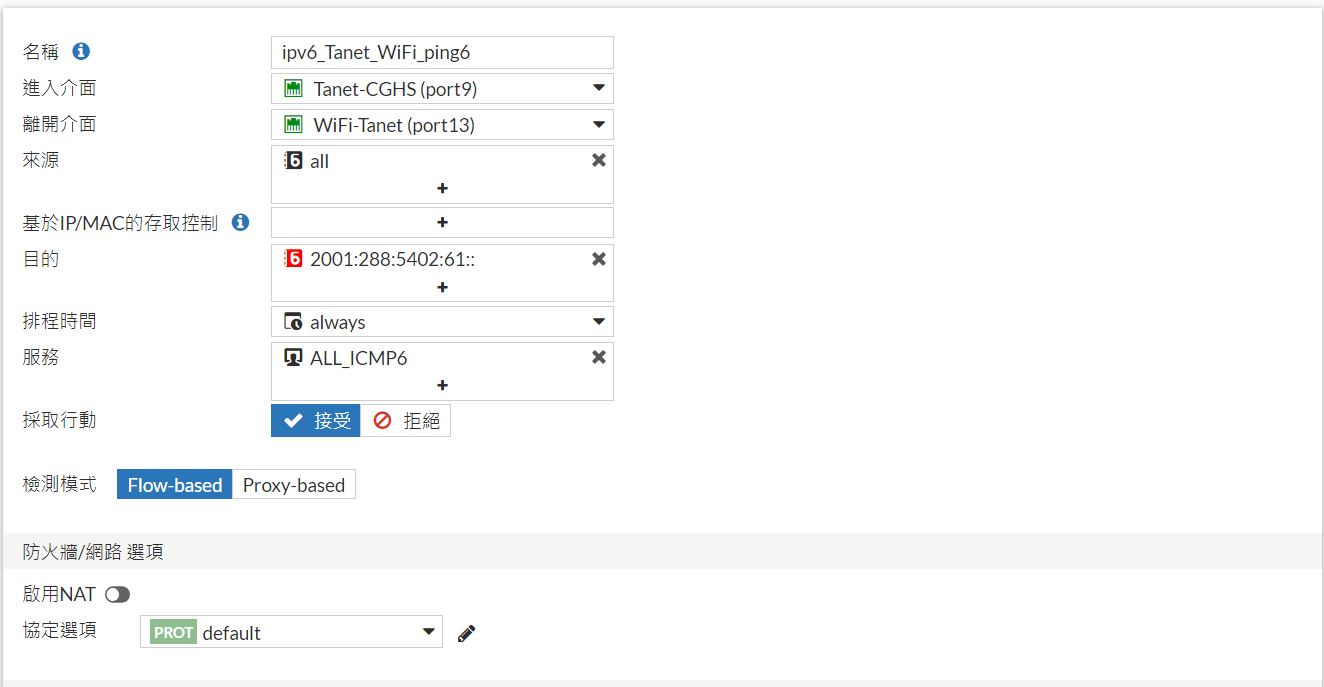

3-2.Tanet to WiFi（服務 icmp6、目的 2001:288:5402:61::）

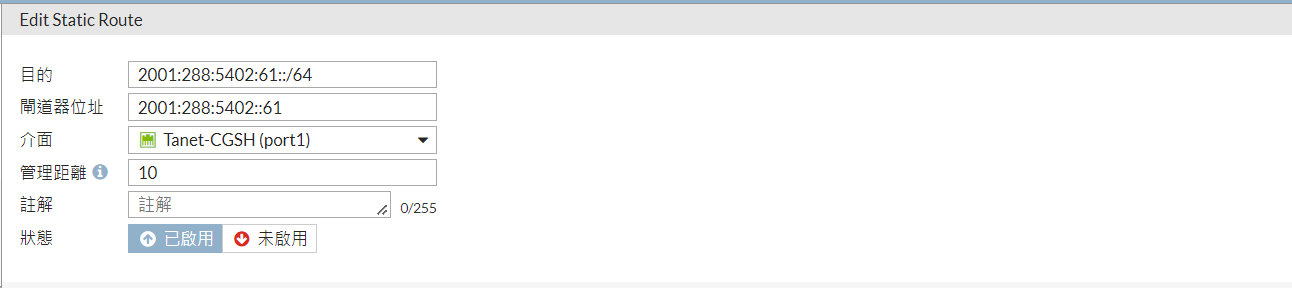

3-3.回來的route（有去有回）


網路介面:

2001:288:5402:61:2::1/128
2001:288:5402:61:2::2/128

GateWay:
2001:288:5402:61::ffff/64

三、無狀態定址自動配置（Stateless Address Autoconfiguration , SLAAC）

IPv4 網路位址取得方式：

1.固定位址配置、2.動態位址配置兩種（Dynamic Host Configuration Protocol）。

IPv6網路，無狀態定址自動配置（Stateless Address Autoconfiguration , SLAAC），可直接由路由器直接核發Prefix給用戶端主機，不需要再透過DHCP伺服器，主機得到Prefix後將結合自動產生的Host ID而產生IPv6位址。

1.End-User Interface w/ DHCPv6

https://weberblog.net/basic-ipv6-configuration-on-a-fortigate-firewall/
CGSH-Fortigate-200D (port2) # show
config system interface
    edit "port2"
        set vdom "CGSH"
        set ip 192.168.1.254 255.255.255.0
        set allowaccess ping https fgfm
        set type physical
        set alias "CGSH-Center "
        set device-identification enable
        set device-identification-active-scan enable
        set role lan
        set snmp-index 23
        config ipv6
            set ip6-address 2001:288:5402:1::ffff/64
            set ip6-allowaccess ping
            set ip6-send-adv enable
            set ip6-other-flag enable
            config ip6-prefix-list
                edit 2001:288:5402:1::/64
                    set autonomous-flag enable
                    set onlink-flag enable
                next
            end
        end
    next

set ip6-allowaccess ping https ssh http fgfm capwap – 允許在此port的防火牆的協議。
set ip6-send-adv enable – 從這個Port發送的 IPv6 路由。
set ip6-other-flag enable – 我們使用 SLAAC 為內部設備分配 IP 地址。SLAAC 不配置諸如 DNS 設置之類的東西，所以這個選項告訴內部設備仍然從可用的 DHCP 獲取一些信息。

CGSH-Fortigate-200D (port2) # show
config system interface
    edit "port2"
        set vdom "CGSH"
        set ip 192.168.1.254 255.255.255.0
        set allowaccess ping https fgfm
        set type physical
        set alias "CGSH-Center "
        set device-identification enable
        set device-identification-active-scan enable
        set role lan
        set snmp-index 23
        config ipv6
            set ip6-address 2001:288:5402:1::ffff/64
            set ip6-allowaccess ping
        end
    next
end
CGSH-Fortigate-200D (CGSH) # config system dhcp6 server

CGSH-Fortigate-200D (server) # show
config system dhcp6 server
    edit 1
        set lease-time 86400
        set subnet 2001:288:5402:1::/64
        set interface "port2"
        set dns-server1 2001:288:5400::1
        set dns-server2 2001:b000:168::1
        set dns-server3 2001:4860:4860::8888
    next
end

CGSH-Fortigate-200D (server) #
edit      Add/edit a table value.
delete    Delete a table value.
purge     Clear all table values.
rename    Rename a table entry.
get       Get dynamic and system information.
show      Show configuration.
end       End and save last config.

CGSH-Fortigate-200D (server) # delete 1

CGSH-Fortigate-200D (server) # show
config system dhcp6 server
end
